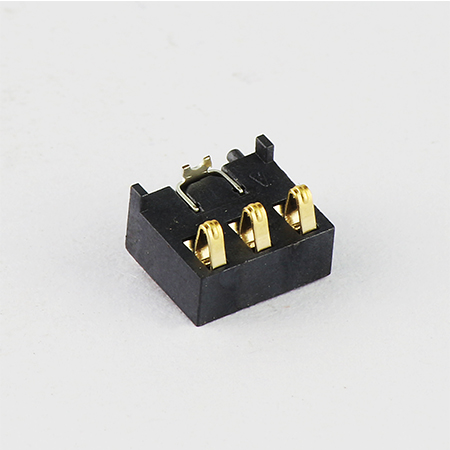

High Quality Battery Wire to Wire Terminal Connector
Battery wire to wire terminal connector
Specification:
Planarity of signal solder tail signal from Z
Upper direction: 0 maximum
Lower direction: 0.10mm maximum
Current rating: 2.0A maximum
Voltage rating: 12V
Dielectric withstanding voltage: 250V AC R. M. S
Insulation resistance: 1, 000M ohms minimum at 500V DC
Operating temperature: -30 to +85º C
Durability: 5, 000 cycles
Operating force of pin: 140gf + – 20g/each
Stroke: 1.2mm.
Why choose us?
1. Quality control
Our QC staffs do strict supplier evaluations, in-coming inspections, in-process inspections, final inspections and pre-delivery inspections. The most important is that we listen to what our customers say and are always looking for ways to improve the quality of our products through continuous improvement.
2. OEM Ability
We have built stable and long-term cooperate relationship with supermarkets, we can also provide ODM, OEM and Agent services to our customers over the world.
3. Parts Available
We have spare parts for immediate delivery to anywhere in the world. While our vehicles become standard with more features than anyone else, we also offer more optional parts for our vehicles than anyone else.
4. Good Warranty
We take customer satisfaction and product quality as the first priority for us. We supply reliable warranties and good after-sales services.
F A Q
*Q: Can I get samples from you?
A: We are honored to offer you samples for quality check.
*Q: Can I get samples from you?
A: We are honored to offer you samples for quality check
*Q: What parts are manufactured by you?
A: All of frame parts are manufactured by us
*Q: What is the lead-time? (how long do you need to prepare my goods?)
A: 10 days for sample orders, 30 days for mass production orders (based on different quantities)
*Q: How long do I need to wait before my goods arrive?
A: 3-5 days for international express, 5-7 days for air transportation, 35-40 days for sea transportation
*Q: Can you put my brand name (logo) on these products?
A: Yes or container order, sticker order quantity over 100 pieces
*Q: What payment methods do you accept?
A: T/T, L/C, Western Union, MoneyGram
*Q: What certified do you have?
A: Since Europe and America are our main markets, all of our products are with EEC/EPA certified
For some models, the certified are already available
